Fuente de 5V de bajo ruido (CIR20705S)

Written by: Newton C. Braga
Category: Banco de circuitos



Esta fuente de alimentación se obtuvo de una Electronic Design de los años 90. El circuito se aplica a otros reguladores de 3 terminales. La corriente de salida máxima es 200 mA.

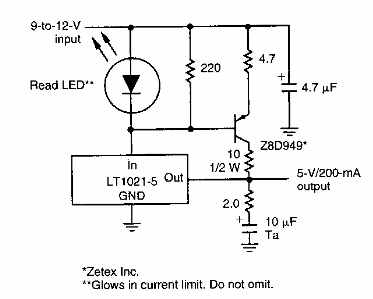

Fuente de 5V de bajo ruido
Fuente de 5V de bajo ruido
