Control de onda completa con SCR (CIR20629S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito es de una documentación americana de los años 90. El SCR puede ser de cualquier tipo y los diodos deben tener corriente según el motor controlado.

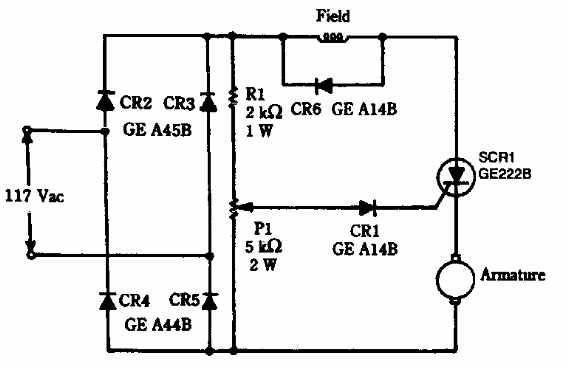

Control de onda completa con SCR
Control de onda completa con SCR
