Baliza de carril (CIR20619S)

Written by: Newton C. Braga
Category: Banco de circuitos

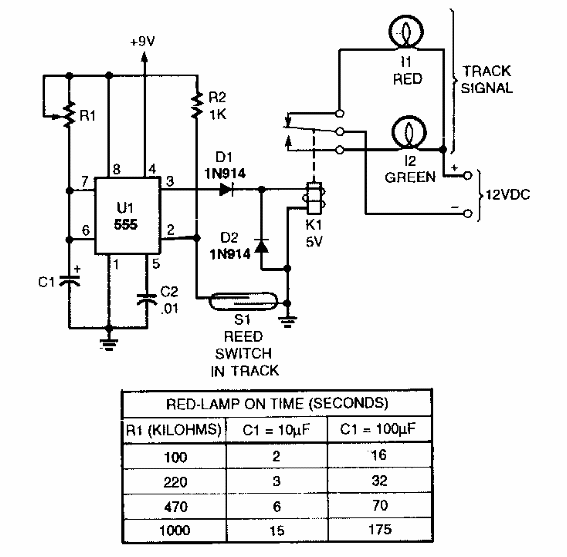

Encontrado en una Popular Electronics de los años 90, este circuito usa un interruptor de lengüeta en los rieles como sensor. En lugar de lámparas, en una versión moderna, se pueden utilizar LED.



Baliza de carril
Baliza de carril
