Llama pez (CIR20609S)

Written by: Newton C. Braga
Category: Banco de circuitos

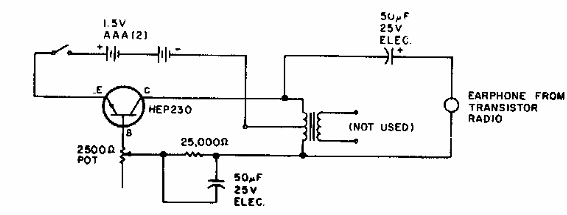

Este circuito se encontró en una antigua publicación estadounidense. El transformador es el tipo de salida que se encuentra en las radios de transistores antiguas. El transductor es un auricular de cristal.



Llama pez
Llama pez
