Mini receptor AM (CIR20274S)

Written by: Newton C. Braga
Category: Banco de circuitos

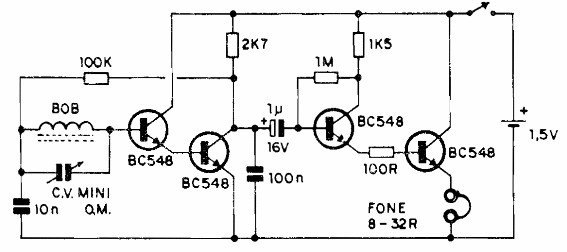

Indicado en el momento de la publicación como un “walkman” para radios AM, este circuito es simple y también se puede ensamblar fácilmente. La bobina consta de 80 a 100 vueltas de alambre 26 o 28 en una pequeña varilla de ferrita.



Mini receptor AM
Mini receptor AM
