Integrador rápido (CIR19818S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito fue encontrado en una publicación de National Semiconductor. Como el LM108 no es común en la actualidad, el circuito se puede implementar con otros operacionales equivalentes. La fuente de alimentación debe ser simétrica.

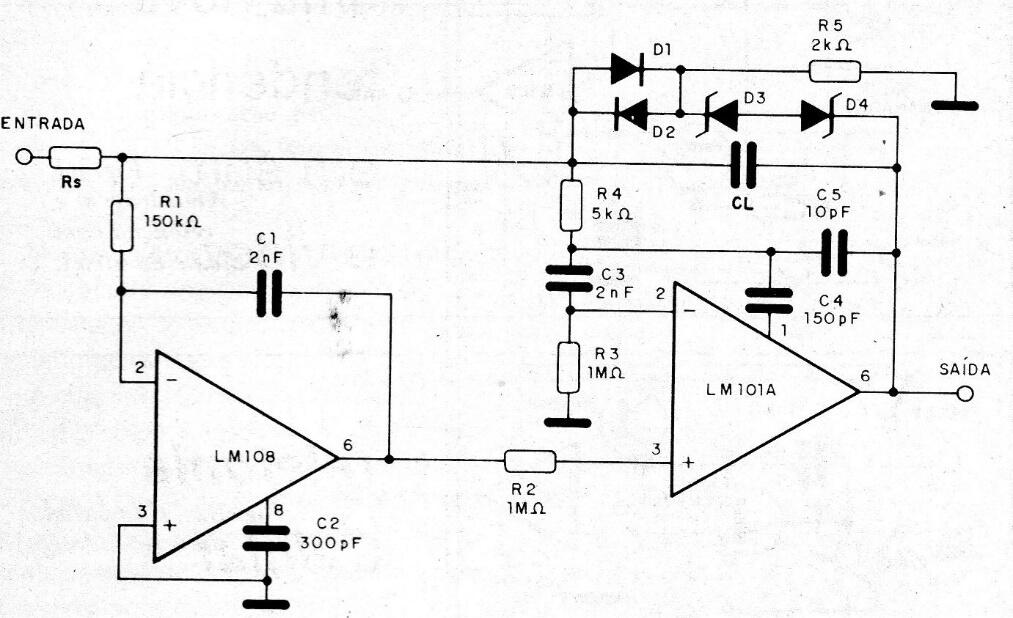

Integrador rápido
Integrador rápido | Haga click en la imagen para ampliar |
