Oscilador Colpitts (CIR19679S)

Written by: Newton C. Braga
Category: Banco de circuitos



La frecuencia de este oscilador depende de la bobina y los capacitores C1 y C2. Para 1 MHz L1 está formado por 80 vueltas de hilo 28 en un tubo de 1 cm y C1 y C2 de aproximadamente 220 pF. La tensión de alimentación puede estar entre 9 y 12 V.



Oscilador Colpitts

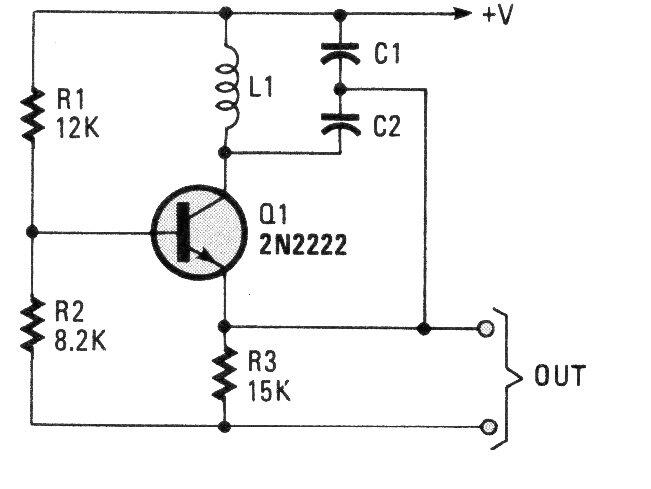

Oscilador Colpitts | Haga click en la imagen para ampliar |
