Convertidor reductor con LT1074 (CIR19453S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este circuito es de Linear Technology Applications de 1993. El circuito tiene una salida de 5 A. Los componentes utilizados son poco comunes en la actualidad.

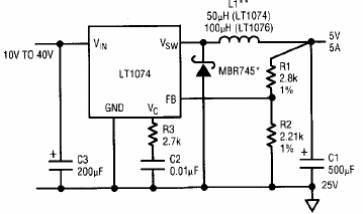

Convertidor reductor con LT1074
