Regulador conmutado de 5 V x 1 A MC34060 (CIR19141S)

Written by: Newton C. Braga
Category: Banco de circuitos



El circuito presentado, que utiliza un componente inusual hoy en día, es del Motorola Linear Databook de 1990. El componente crítico es el choque de salida.

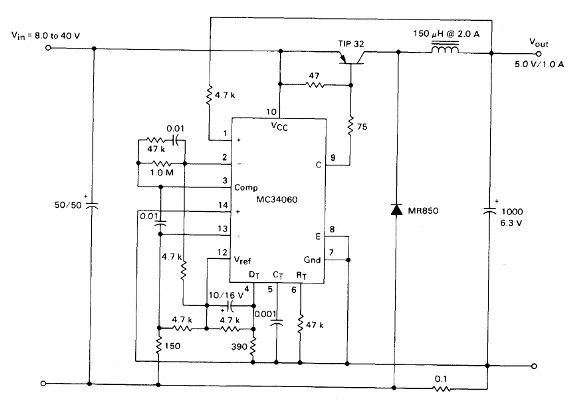

Regulador conmutado de 5 V x 1 A MC34060
