Amplificador de audífonos (CIR18640S)

Written by: Newton C. Braga
Category: Banco de circuitos

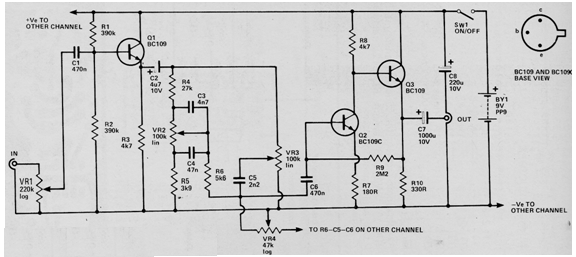

Este circuito es de la documentación de 1980, pero todavía se puede ensamblar hoy con transistores BC548. El circuito incluye un control y debe ser duplicado para una versión estéreo. El consumo es bajo, pero se recomienda utilizar pilas en lugar de batería, para una mayor autonomía de la fuente.
