Control de tiempo de precisión con PUT (CIR18368S)

Written by: Newton C. Braga
Category: Banco de circuitos

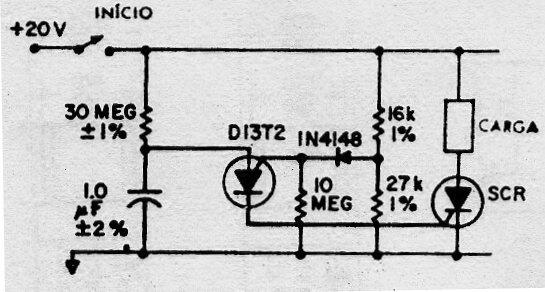

Con el uso de resistencias y condensadores de precisión, este circuito con transistor unijuntura programable puede obtener tiempos de hasta unos minutos. El circuito es de una publicación de 1967. El SCR es el TIC106 y el PUT puede ser cualquiera. Sin embargo, los componentes del precio son los elementos críticos del montaje.
