LED rítmicos (CIR17861S)

Written by: Newton C. Braga
Category: Banco de circuitos

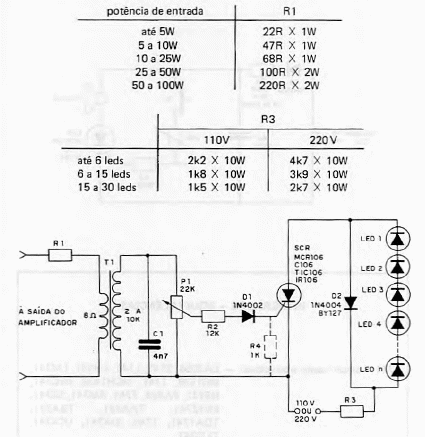

Conectado a la salida de un amplificador, este circuito hace que un conjunto de LED parpadeen al ritmo de la música que se está reproduciendo. El transformador puede ser un pequeño transformador de potencia con un primario de 110 V (que se conectará a P1) y un secundario de 6, 9 o 12 V con una corriente de 200 a 500 mA. El resistor R3 depende del número de LED y R1 de la potencia del amplificador, como se muestra en la tabla que se muestra a continuación. Los LED pueden ser de cualquier color, pero todos funcionarán con la misma corriente. El circuito puede suministrar hasta 30 LED en cada serie. Se requiere el resistor R4 si el SCR utilizado es TIC106. Para este componente, recomendamos el sufijo B para la red de 110 V y el sufijo D para la red de 220 V.
