Fotómetro con CA3130 (CIR17782S)

Written by: Newton C. Braga
Category: Banco de circuitos



El circuito integrado CA3130 consta de un amplificador operacional con FET en la entrada. Este componente tiene varios equivalentes que se pueden utilizar en este circuito. La ganancia y por tanto el rango de luz que se puede medir se ajustan en un potenciómetro de 220 k. El valor máximo de este componente es 4M7. El instrumento indicador es un miliamperímetro analógico de escala completa de 1 mA. La alimentación puede ser suministrada por una sola batería de 9 V, ya que el consumo de la unidad es bastante bajo.

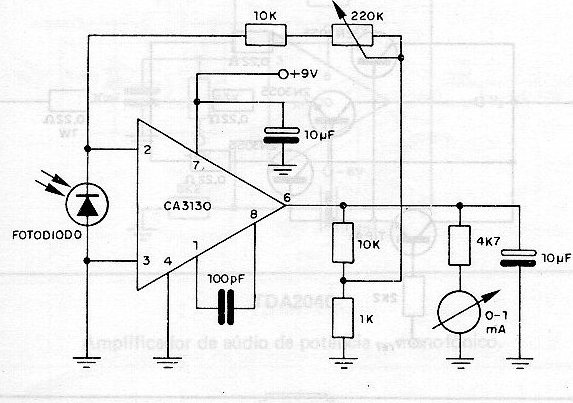

Fotómetro con CA3130
