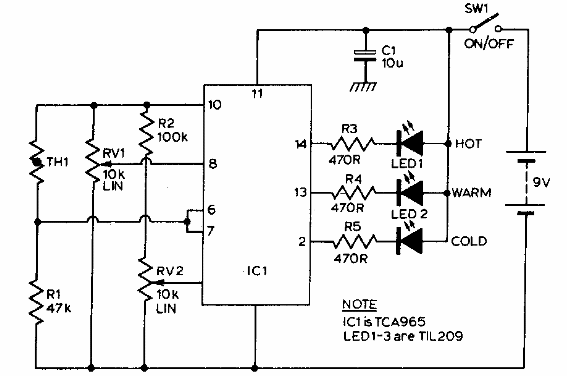

Este sencillo sensor de tres LED utiliza un NTC en la entrada. El circuito se basa en un componente integrado poco común en la actualidad. Lo encontramos em una documentación de los años 80.



Sensor de temperatura
Sensor de temperatura
