Disparador Schmitt (CIR17643S)

Written by: Newton C. Braga
Category: Banco de circuitos



El circuito integrado que se usa en este disparador es poco común hoy en día. Lo encontramos en una documentación de los años 70. El circuito opera con señales de hasta 50 kHz.

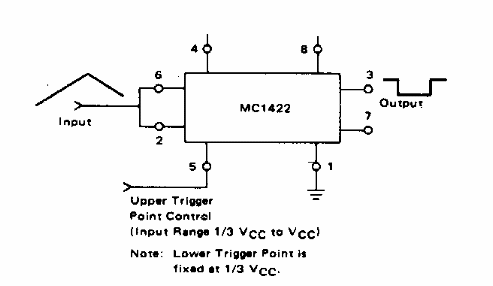

Disparador Schmitt
Disparador Schmitt
