Oscilador de puente de Viena de tres décadas (CIR17514S)

Written by: Newton C. Braga
Category: Banco de circuitos



Este oscilador se puede utilizar como generador de señales en un taller, generando señales sinusoidales de 15 Hz a 15 kHz en tres bandas. El circuito es de una Radio Electronics de 1989 y la fuente de alimentación debe ser simétrica.

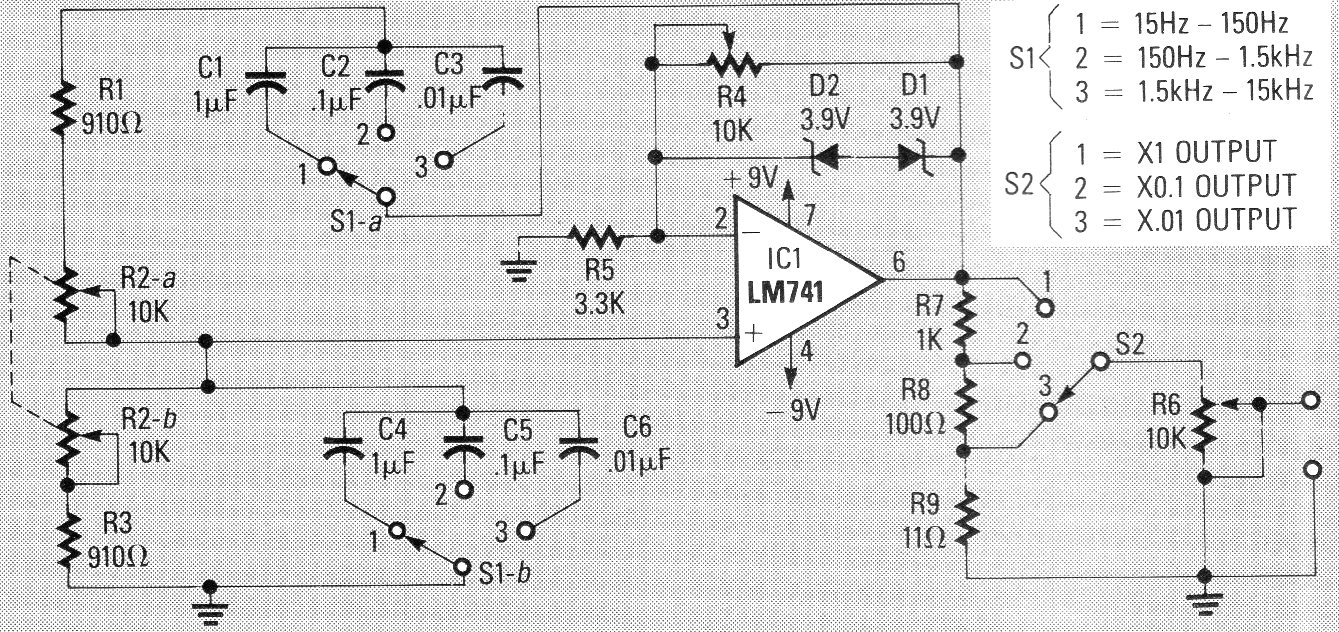

Oscilador de puente de Viena de tres décadas
Oscilador de puente de Viena de tres décadas | Haga click en la imagen para ampliar |
