Intermitente con control (CIR17275S)

Written by: Newton C. Braga
Category: Banco de circuitos

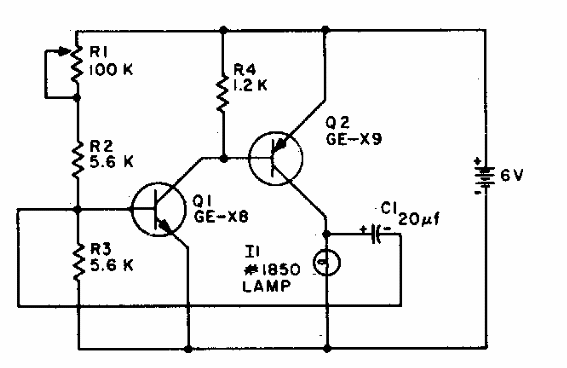

Esta luz intermitente o pulsador se puede usar en una linterna ordinaria. El circuito se puede adaptar para usar una lámpara en lugar de un LED. Los transistores admiten equivalentes. C1 determina el rango de frecuencia.



Intermitente con control
Intermitente con control
