Alarma de temperatura (CIR16559S)

Written by: Newton C. Braga
Category: Banco de circuitos

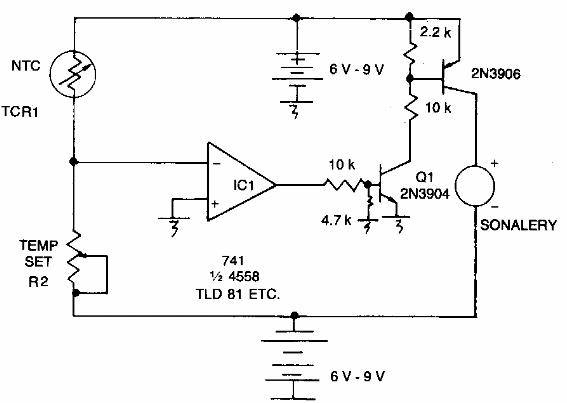

Encontrado en la documentación estadounidense de los años 90, este circuito activa un zumbador con un oscilador tipo Sonalert cuando la temperatura del sensor alcanza un cierto valor establecido en R2.
