Amplificador 400 mW (CIR16139S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Encontrado en una documentación de la década de 1970, este circuito tiene una respuesta plana de 15 Hz a 130 kHz. Se pueden utilizar transistores equivalentes modernos.

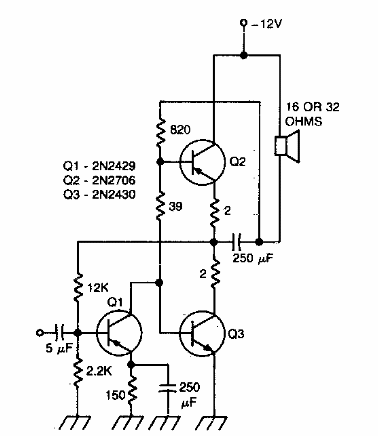

Amplificador 400 mW
Amplificador 400 mW
