Transmisor FM óptico (CIR15913S)

Written by: Newton C. Braga
Category: Banco de circuitos

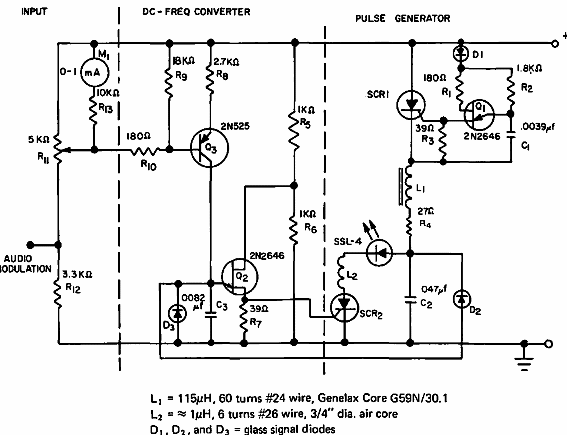

    Este circuito se encontró en una documentación de General Electric de 1970. Este circuito ya usaba un LED emisor. El circuito opera a frecuencias de 50 Hz a 50 kHz con pulsos cortos.



Transmisor FM óptico
