Fuente de teleimpresora (CIR15896S)

Written by: Newton C. Braga
Category: Banco de circuitos

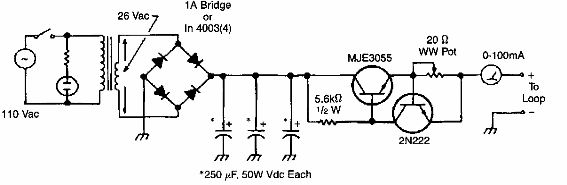

     Originalmente creado para alimentar una impresora RTTY de los 80, este circuito se puede usar en otras aplicaciones. El circuito es de una Amateur Radio de la época.



Fuente de teleimpresora
Fuente de teleimpresora
