Regulador 12 V x 360 mA (CIR15859S)

Written by: Newton C. Braga
Category: Banco de circuitos

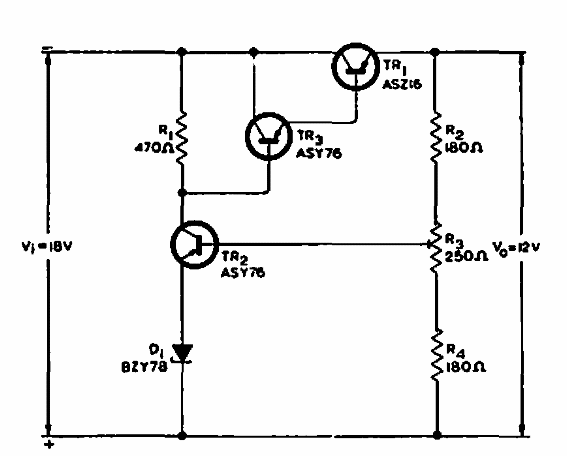

     Con una entrada de 18 V, este regulador se encontró en la documentación de Philips de los años 60. Los transistores son de esa época. El transistor de potencia debe tener un disipador térmico.



Regulador 12 V x 360 mA
Regulador 12 V x 360 mA
