Regulador de 20 V con 100 mA con FET (CIR15699S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Encontrado en una EEE, este circuito utiliza FET de la época y uno bipolar. Se pueden usar transistores equivalentes actuales.

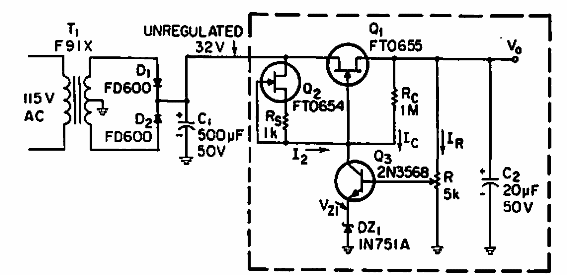

Regulador de 20 V con 100 mA con FET
Regulador de 20 V con 100 mA con FET
