Regulador de baja tensión neón (CIR15698S)

Written by: Newton C. Braga
Category: Banco de circuitos

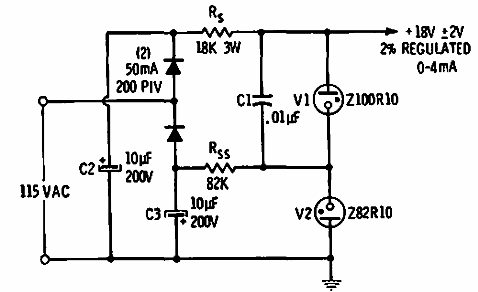

     Encontrado en la documentación de lámparas de neón de 1969, este circuito proporciona 18 V regulados con una corriente de 0 a 4 mA utilizando lámparas de neón. Las lámparas son tipos de la época.
