Circuito de disparo para válvula foto multiplicadora (CIR15689S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Este circuito se encontró en una Electronic Engineering de los años 90. El circuito tiene los elementos críticos de la válvula. Los amplificadores operacionales admiten equivalentes.

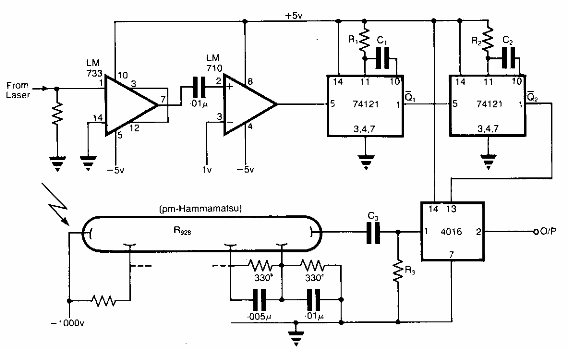

Circuito de disparo para válvula foto multiplicadora
Circuito de disparo para válvula foto multiplicadora
