Apagado por batería agotada (CIR15514S)

Written by: Newton C. Braga
Category: Banco de circuitos

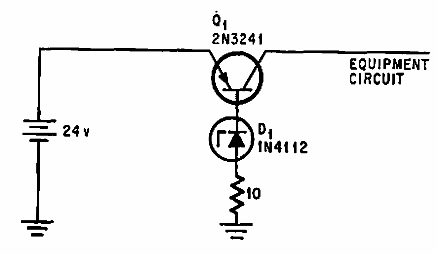

     Cuando la tensión de la batería de 24 V cae por debajo de 18 V, este circuito corta su descarga. El circuito es de documentación de 1968. Se puede adaptar para operar con otras tensiones.



Apagado por batería agotada
Apagado por batería agotada
