Disparador con SCR (CIR15474S)

Written by: Newton C. Braga
Category: Banco de circuitos

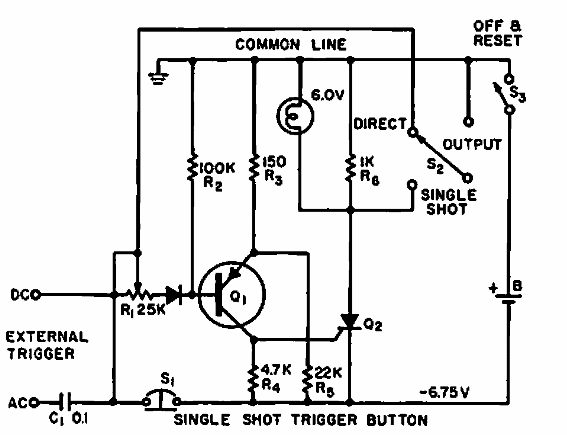

     Este circuito de disparo único se ha indicado para aplicaciones de fotografía. El circuito es de una Electronics World de 1964. El transistor es de uso general y el SCR puede ser de cualquier tipo.
