Amplificador de baja tensión (CIR15436S)

Written by: Newton C. Braga
Category: Banco de circuitos

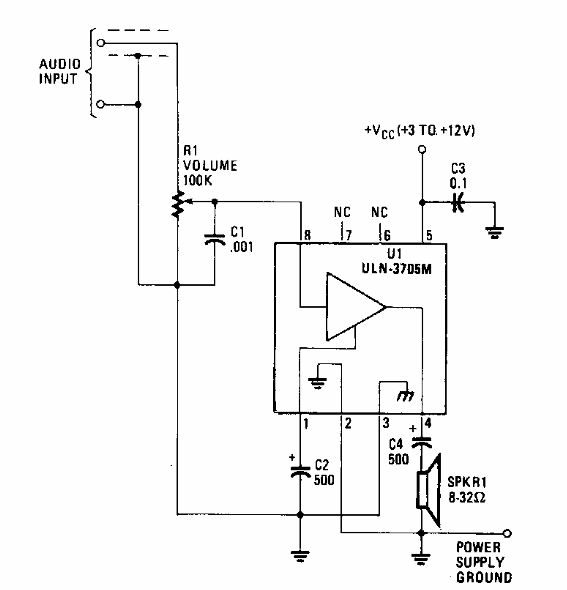

     Este circuito de baja potencia puede ser alimentado con tensiones de 1.8 V. Lo encontramos en una Hands On Electronics de los años 80. La carga puede ser de 8 a 32 ohms.
