Medidor de desviación (CIR15343S)

Written by: Newton C. Braga
Category: Banco de circuitos

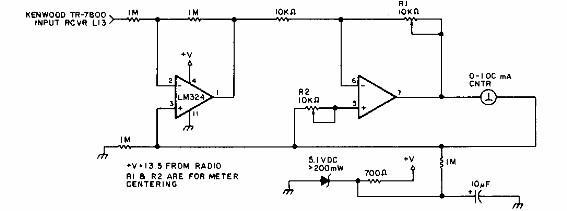

     Indicado para el ajuste de discriminadores de receptores de FM y VHF, este circuito se encontró en una revista 73 para radioaficionados de los 90. El amplificador operacional puede ser de tipo común.



Medidor de desviación
Medidor de desviación
