Oscilador 30 kHz (CIR15255S)

Written by: Newton C. Braga
Category: Banco de circuitos

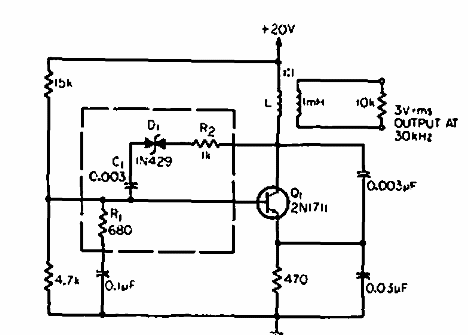

    Encontrado en un EEE de 1967, este circuito genera una señal de amplitud constante, estabilizada por un diodo zener. El circuito puede funcionar con tensiones de 18 a 22 V.
