Oscilador con drenaje sintonizado (CIR15173S)

Written by: Newton C. Braga
Category: Banco de circuitos

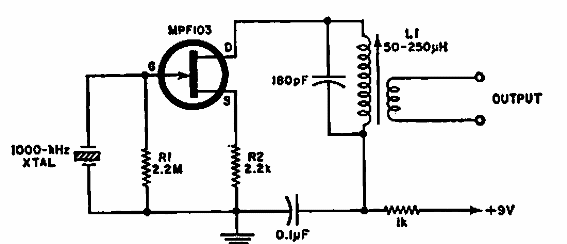

    Este circuito se encontró en una Electronics World de 1969. El circuito tiene una corriente de drenaje de aproximadamente 150 uA. La frecuencia generada es de 1 MHz con los componentes utilizados.



Oscilador con drenaje sintonizado
Oscilador con drenaje sintonizado
