Shield TTL de 20 A (CIR14599S)

Written by: Newton C. Braga
Category: Banco de circuitos

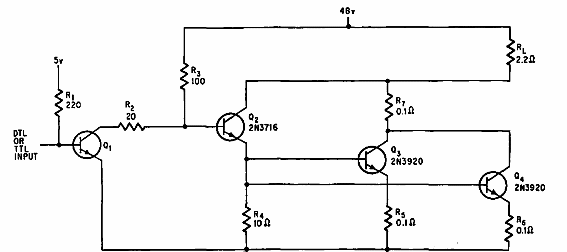

    Este circuito es de una antigua publicación estadounidense, que utiliza transistores de la época y funciona con una tensión de 48 V. La carga es de 2.2 ohms y los transistores deben reemplazarse por equivalentes modernos.



Shield TTL de 20 A
Shield TTL de 20 A
