Dimmer 600 W (CIR14562S)

Written by: Newton C. Braga
Category: Banco de circuitos

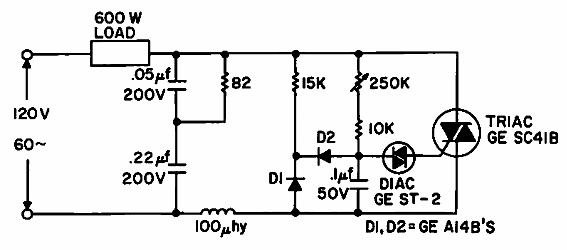

     Este circuito es de la documentación de General Electric de 1966. El Triac puede ser equivalente a 6 A o más, montado en un buen disipador térmico. Se puede usar cualquier diac.



Dimmer 600 W
Dimmer 600 W
