Monitor de batería y alternador CIR14520S (CIR14520S)

Written by: Newton C. Braga
Category: Banco de circuitos

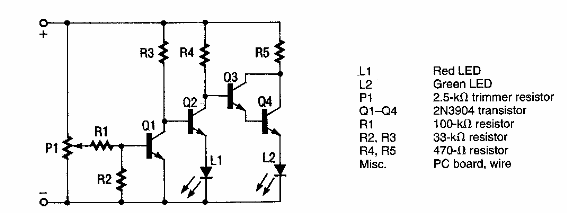

    Encontrado en un Hobbyst Handbook de 1991, este circuito monitorea tanto la tensión de la batería como el del alternador. El punto de ajuste se obtiene en P1.
