Pulsos de 60 Hz sin ruido (CIR14460S)

Written by: Newton C. Braga
Category: Banco de circuitos



    Sugerido por Linear Technology en una documentación antigua, este circuito produce pulsos rectangulares de 60 Hz a partir de la red eléctrica. El circuito está libre de ruido.

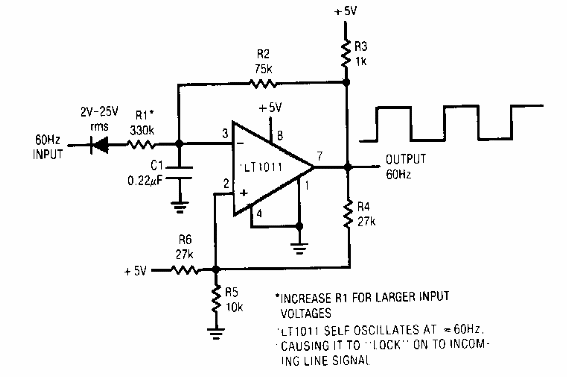

Pulsos de 60 Hz sin ruido
Pulsos de 60 Hz sin ruido
