Sensor para fotodiodo (CIR14428S)

Written by: Newton C. Braga
Category: Banco de circuitos

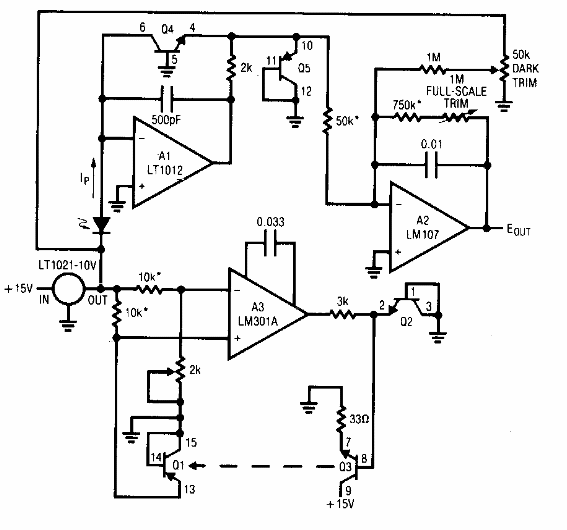

     Sugerido por Linear Technology en la documentación de los años 90, este circuito está estabilizado térmicamente. El circuito es un condicionador de señal para fotodiodos.



Sensor para fotodiodo
Sensor para fotodiodo
