Neón aleatorio (CIR14383S)

Written by: Newton C. Braga
Category: Banco de circuitos

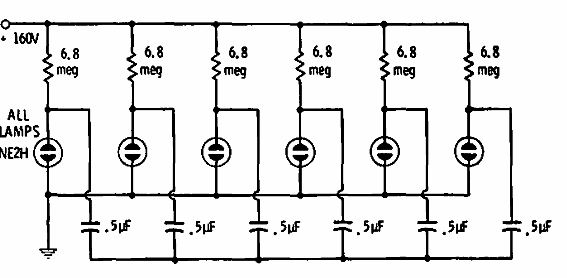

     Este circuito hace que las lámparas de neón de un conjunto parpadeen aleatoriamente. Los capacitores determinan la velocidad de los parpadeos. El suministro debe hacerse con alta tensión.



Neón aleatorio
Neón aleatorio
