Sirena (CIR14382S)

Written by: Newton C. Braga
Category: Banco de circuitos

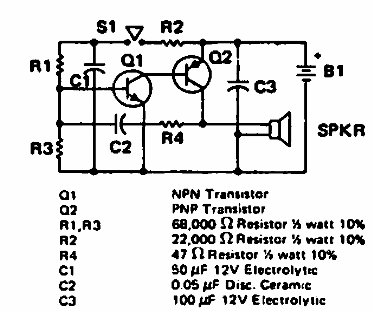

    Esta versión del conocido circuito de sirenas se obtuvo en un Manual de Colectro de los años 70. Los transistores son de propósito general, y Q2 puede ser un BD136 para una mayor potencia con una alimentación de 6 a 12 V.
