Amplificador estable (CIR14331S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Este amplificador de bajo ruido y baja deriva se encontró en un EDN de la década de 1990. Se puede implementar con equivalentes operacionales modernos. La fuente debe ser simétrica.

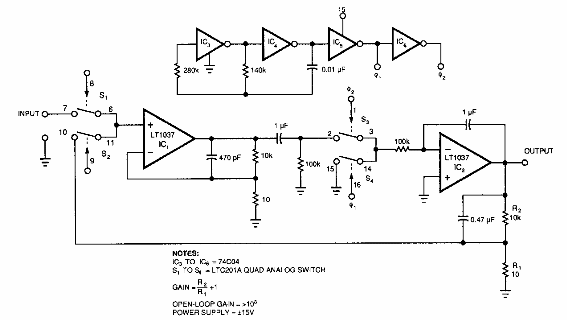

Amplificador estable
Amplificador estable
