Detector de fase para señal cuadrada (CIR14006S)

Written by: Newton C. Braga
Category: Banco de circuitos

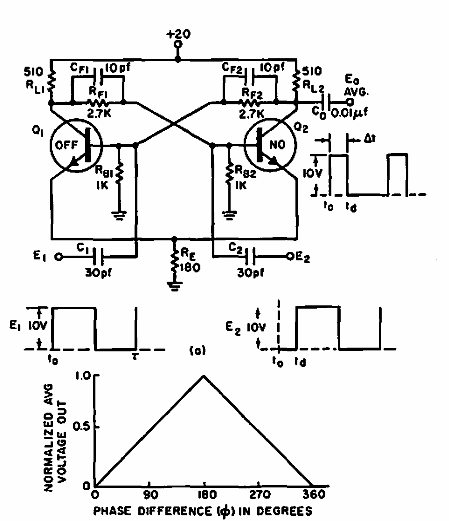

    Este detector fue encontrado en una Electronic Design usando transistores de la época. El circuito se puede hacer con transistores equivalentes modernos. Vea los gráficos con su desempeño.



Detector de fase para señal cuadrada
Detector de fase para señal cuadrada
