Relé de retraso de faros (CIR13712S)

Written by: Newton C. Braga
Category: Banco de circuitos

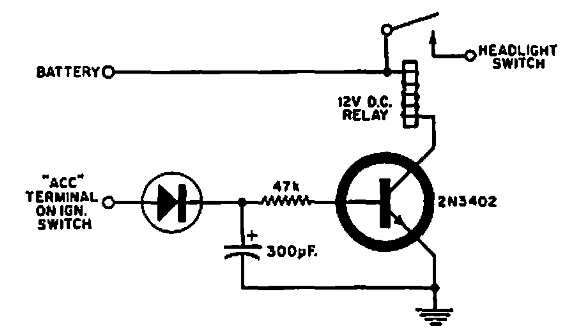

     Este circuito es de un mundo electrónico de 1967. El circuito ralentiza la activación de un faro. El capacitor determina el tiempo de retraso.
