Regulador de tensión para alternador (CIR13709S)

Written by: Newton C. Braga
Category: Banco de circuitos

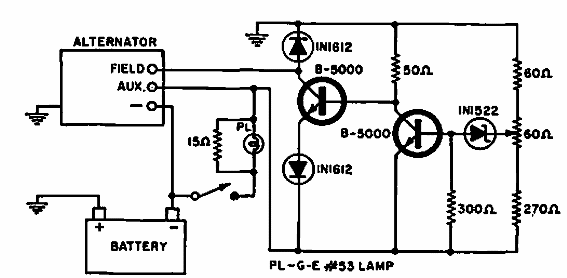

     Este circuito se encontró en una Electronics World de 1968. El circuito utiliza transistores de potencia de la época. Los transistores son para 25 W y deben montarse en disipadores térmicos.



Regulador de tensión para alternador
Regulador de tensión para alternador
