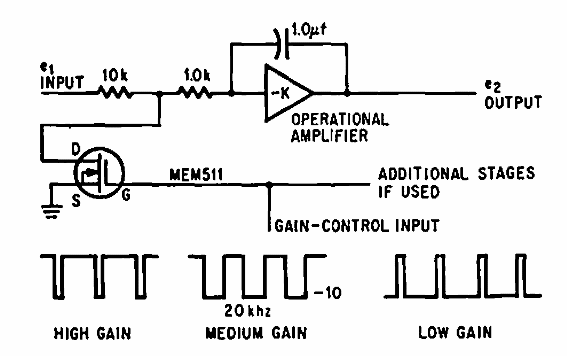

Este circuito se encontró en una documentación de Estados Unidos de 1967. Muestra cómo obtener el control de ganancia mediante señales digitales. El circuito se puede usar como escudo. FET puede ser un equivalente moderno.



Control de ganancia con limitador
Control de ganancia con limitador
