Generador de ruido de banda ancha (CIR13089S)

Written by: Newton C. Braga
Category: Banco de circuitos



    Encontramos este circuito en una documentación antigua. Se pueden usar diodos equivalentes de propósito general. La señal es de muy baja intensidad.

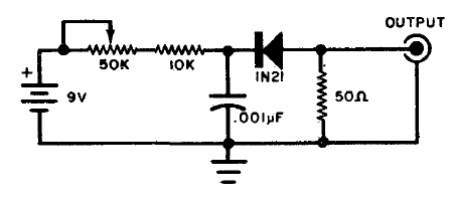

Generador de ruido de banda ancha
Generador de ruido de banda ancha
