Prueba de audio y RF (CIR13167S)

Written by: Newton C. Braga
Category: Banco de circuitos

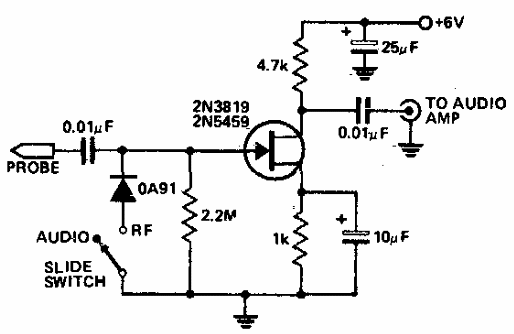

     Se puede usar cualquier FET en este circuito de los 80. La alimentación se puede suministrar con baterías. La salida se aplica a la entrada de un pequeño amplificador de audio.



Prueba de audio y RF
Prueba de audio y RF
