Medidor de potencia RF (CIR12487S)

Written by: Newton C. Braga
Category: Banco de circuitos

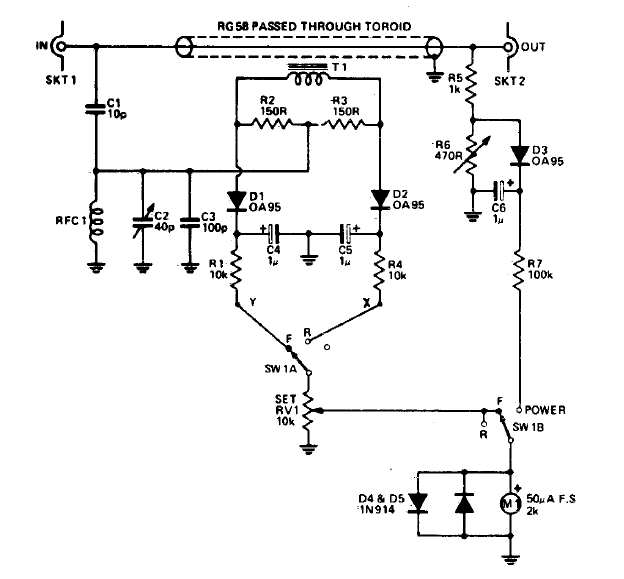

    Este vatímetro de RF se encontró en una documentación estadounidense de la década de 1980. Los componentes son comunes y el instrumento es un microamperímetro analógico.



Medidor de potencia RF
Medidor de potencia RF
