Comparador de alta impedancia (CIR12648S)

Written by: Newton C. Braga
Category: Banco de circuitos

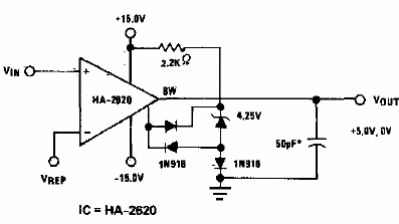

     Este circuito es de una hoja de datos de Harris Semiconductor de los años 80. Sin embargo, el circuito puede implementarse con otros operacionales. La fuente debe ser simétrica.



Comparador de alta impedancia
