Paso con el OC70 o AC122 (CIR11676S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Los transistores que se pueden usar en esta etapa para señales pequeñas son germanio antiguo. El circuito se encontró en un manual de transistor de los años 80. Los valores típicos de los capacitores están entre 100 nF y 1 uF.

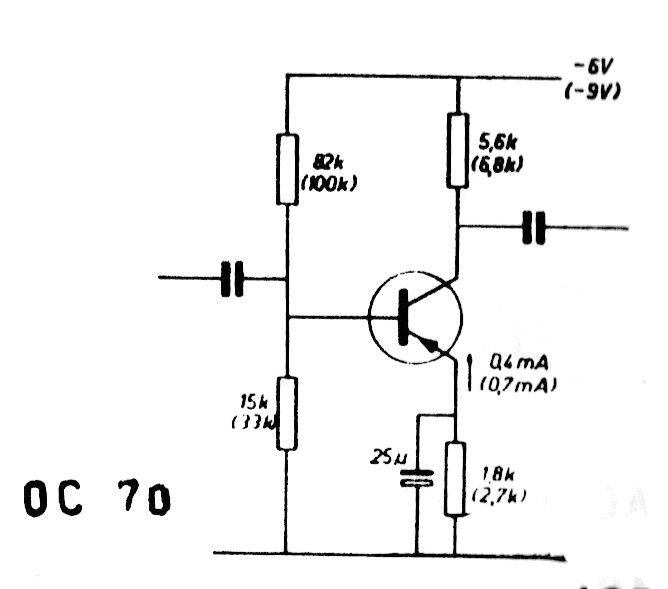

Paso con el OC70 o AC122
Paso con el OC70 o AC122 | Haga click en la imagen para ampliar |
