aGenerador de barrido (CIR11011S)

Written by: Newton C. Braga
Category: Banco de circuitos

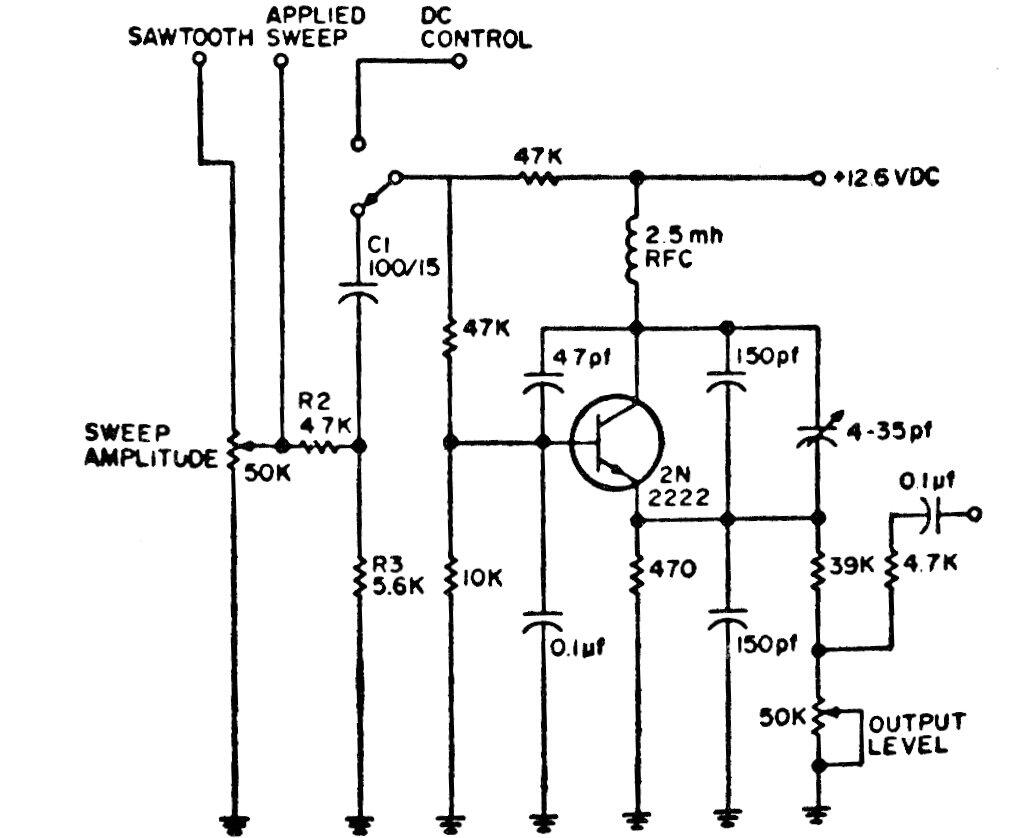

     En la figura tenemos el circuito de un generador de barrido obtenido en una publicación antigua. La frecuencia central depende de la bobina que se puede cambiar según la aplicación y el transistor utilizado.



Generador de barrido
Generador de barrido | Haga click en la imagen para ampliar |
