Feedback de audio para el teclado (CIR11302S)

Written by: Newton C. Braga
Category: Banco de circuitos



     Encontramos este circuito en una documentación de la década de 1980. El circuito produce sonidos o pitidos en un altavoz cuando se aplica una señal de control del teclado. El circuito se puede usar para monitorear teclados de varios tipos.

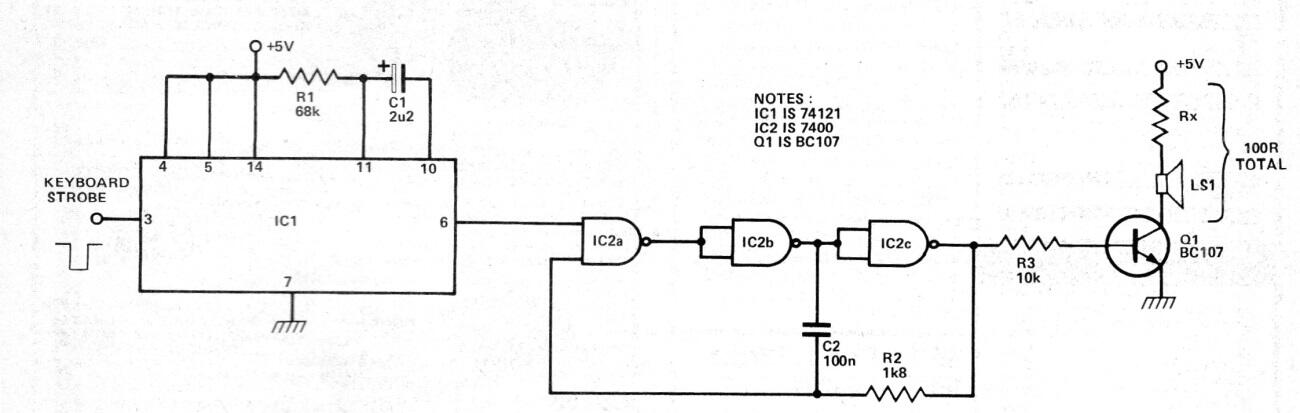

Feedback de audio para el teclado
Feedback de audio para el teclado | Haga click en la imagen para ampliar |
